FCM-4S
Flaps Control Module

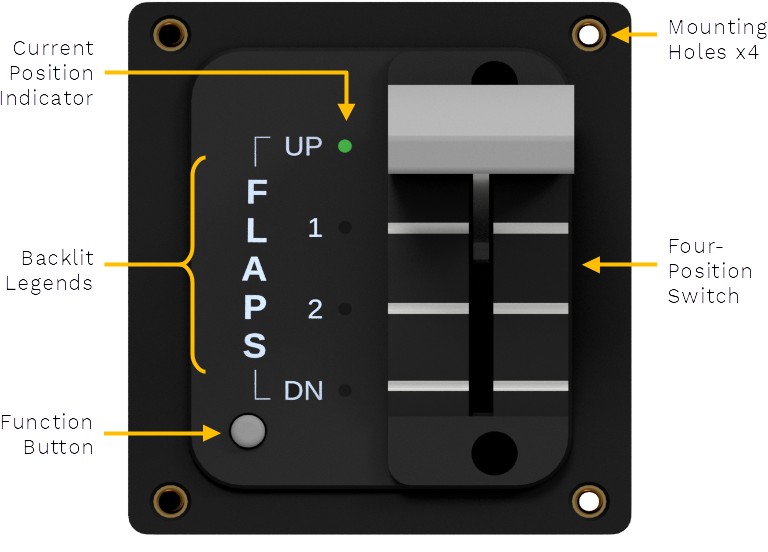

The FCM-4S is a stand-alone solution for control of electric wing flaps. The internal microprocessor reads the position reported by the flaps motor or an external sensor, and displays the real-time position on the front panel LEDs. A four-position switch with ball-bearing detents allows for one-touch changes to your flaps.
Built to Last
The switch mechanism uses optical sensors instead of traditional metal contacts or potentiometers that degrade with age and use. Surface mount device (SMD) electronics withstand engine vibration.
Safety Designed In
The controller continuously monitors for and protects against wiring and motor overload faults. Airspeed lockouts can be programmed to prevent structural damage from inadvertent flaps deployment1,2
Designed for the Environment
Cockpits can get hot. The FCM series uses automotive-grade components designed to operate across a wide temperature range, at least -40° to +85°C.
Clean Look
The FCM-4S fits in with the design aesthetic of modern glass instruments. The fascia sits flush with the front of the instrument panel.
PWM Motor Control
Gradually starts and stops the motor to achieve fine positioning control
Reverse Voltage Protection
Prevents damage to the controller or your flaps motor in case battery is connected reversed
14V and 28V Compatible
Internal power supply regulates the power to the controller’s electronics from as little as 8V up to 30V
No Other Boxes To Install
The controller you mount on the instrument panel is all you need
USB Programming
A micro-USB port facilitates programming of all features with a PC laptop and free utility (see support section to download)
Simple Installation
A standard D-sub 9-pin connector is common to many other avionics, eliminating the need for expensive tools. The controller mounts to a panel with standard #6-32 fasteners.
Dimensions
72 x 65 x 114.3mm (hwd)
Mass
227g (6 oz.), excluding hardware
Input Voltage
14VDC or 28VDC
Output to Motor
14VDC or 28VDC (matches input voltage), <5A
Position Sensor Requirements
3-pin potentiometer, 5k-10kΩ resistance
1. Some features require connection to an EFIS for functionality. Please see the support section for a list of compatible devices
2. Advanced features require a PC laptop with a USB connection for programming.
3. For experimental use only. This equipment does not conform to technical standard orders (TSOs) and cannot be installed in certificated aircraft.
4. Specifications are preliminary and are subject to change.
